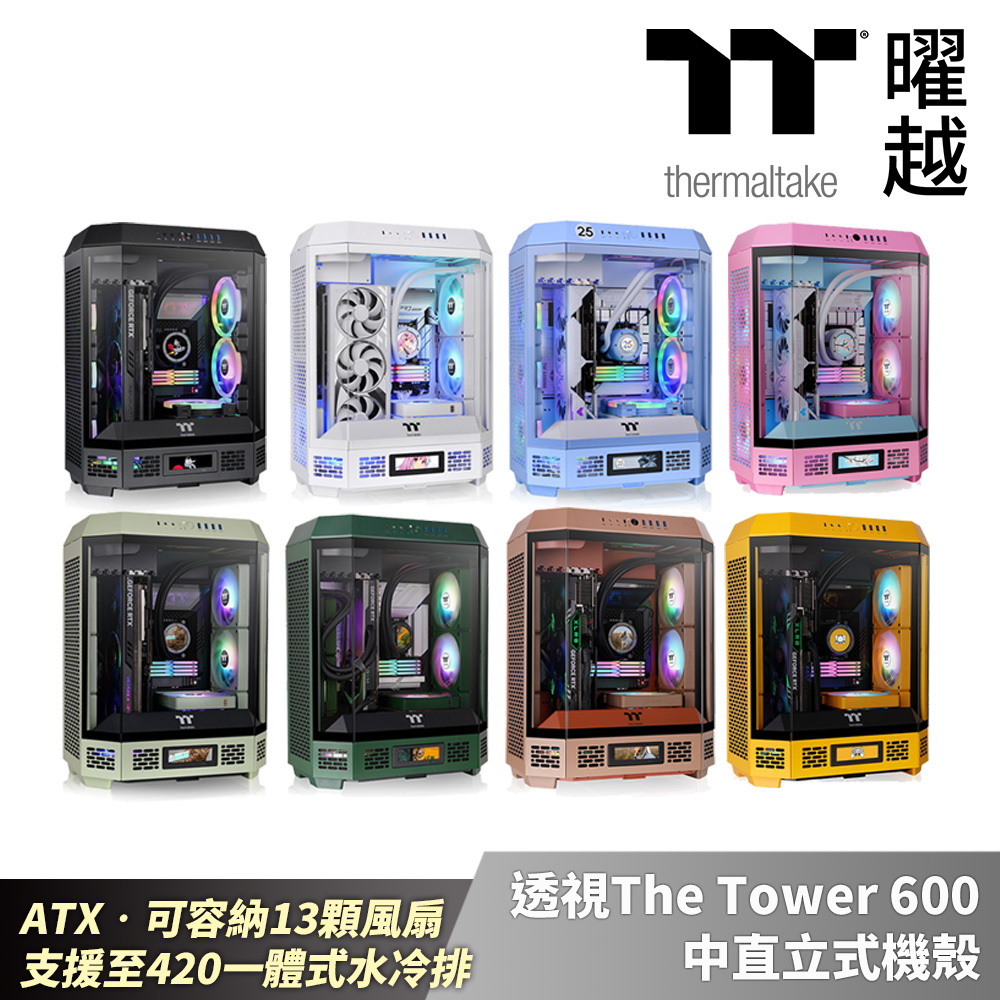

Thermaltake 曜越透視The Tower 600 中直立式機殼白

型號 CA-1Z1-00M1WN-00

系列

透視 The Tower

系列

機型 Mid Tower

尺寸 (高*寬*深) 550 x 420 x 286.4 mm (21.65 x 16.54 x 11.28 inch)

重量 9.70 kg / 21.39 lbs.

側窗 3mm Tempered Glass x 3

顏色 Black

材質 SPCC

散熱系統

Top(exhaust): 140 x 140 x 25 mm

CT140 fan (1500rpm, 30.5 dBA) x 2

儲存裝置 1 x 3.5”, 2 x 2.5” or 3 x 2.5”

PCI 插槽 7

適用主機板 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O 連接埠 USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

電源供應器 Standard PS2 PSU (optional)

風扇支援

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Left:

3 x 120mm, 2 x 120mm, 1 x 120mm
Rear:

2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm

Power Cover:

1 x 120mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm

水冷排支援

Right Side(AIO):

1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm

Left Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm

備註

CPU cooler height limitation:

210mm
VGA length limitation:

280mm(With power cover)

400mm(Without power cover)

PSU length limitation: 220mm
